Ms portable | Diael

(0 Review)

Description

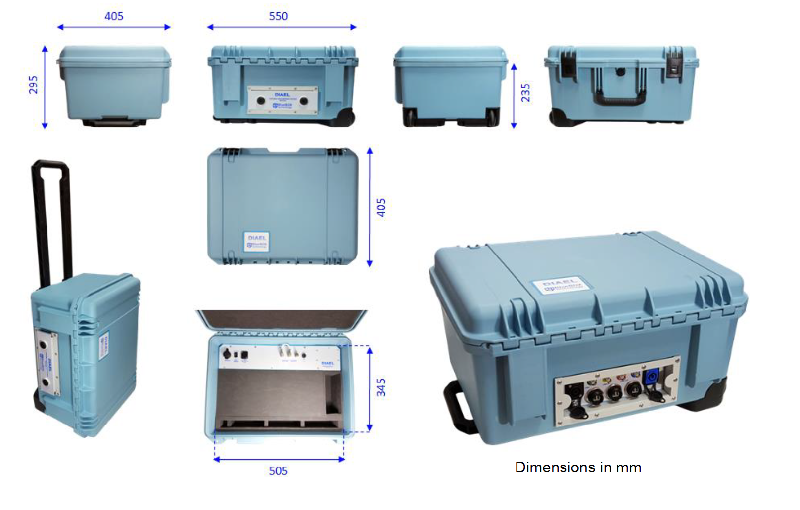

The MS Plus Portable equipment is the ideal solution for the measurement of partial discharges in timely or temporary monitoring services. It contains the measuring electronics inside a suitcase with IP65 degree of protection for use in outdoor installations. Inside it has space to transport all the necessary accessories to be able to realize the capture of partial discharges and make a complete diagnosis. It allows to complete a measure of partial discharges in less than 30 minutes being able to extend the time to a temporary monitoring of several days.

Code

MS+P

Tag

Description
This equipment allows the capture of partial discharge and voltage reference signals to obtain the frequency and phase offset parameters. It has functions to configure the armed with synchronization, or by synchronization input signal by optical fiber or by forced internal synchronization. The system allows the transmission of raw partial discharges and voltage reference signals to be transmitted to a central control PC (CAS). The control of the equipment is done from the server PC through an Ethernet network connection through any of the three available ports (1 electrical and 2 optical).
The MS Plus Portable measuring instrument is designed to operate in a dedicated network with an available bandwidth of 100 Mbps. It can be installed in series with other measurement systems to perform monitoring with multiple measurement points.
The way to synchronize the network of measurement systems can be through a CSS-VR synchronization system, a CSS-GPS system or using its own synchronization function when the equipment is at the head of the fiber optic synchronization network.

Name : MS Portable

Brand : Diael

The company ‘Diagnóstico del Aislamiento Eléctrico, S.L.’ (DIAEL) grew out from a research sponsored in 2006 by ‘Unión Fenosa Distribución’ (UFD) in the field of partial discharges which was developed within the ‘Polytechnic University of Madrid’ (UPM) in close collaboration with the ‘Laboratorio Central Oficial de Electrotecnia’ (LCOE). Such research materialized in a new system of measurement and monitoring of partial discharges for High Voltage cables. Additional researches conducted between 2009 and 2012 have allowed to extend the developments to the field of cables to the areas of Power Transformers and Gas-Insulated Substations (GIS). Also, DIAEL has expanded its range of products and services in the area of High Voltage testing and measuring techniques with temperature measuring equipments by means of optical fiber, systems of generation and measurement of lightning impulses, etc. DIAEL is a spin-off of the UPM with headquarters in Madrid created in 2010, specialized in measurement techniques of high technological level based in the signal processing. DIAEL is advised by a committee of experts with extensive experience in the field of high voltage tests and measurements formed by professors and high qualified personnel. DIAEL participates actively in numerous national and international conferences (CIGRE, CIRED, SMART GRIDS, ALTAE, MATELEC, …). DIAEL has expanded its international sales network by establishing agreements with large companies that allow it to position itself in multiple countries all over the world. Https://www.diael.com
